Woven Fabric Granulating Machine

ø CE certificate  ø CAS identification ø Lower power consume
ø More stable output  ø Smooth & full pellets

Applicable plastic materials: PP woven bag, non woven bag, pp film, pe film, ldpe film, hdpe film, lldpe film, bopp film, waste agricultural film
Material shapes: film, woven bag, crushed material
Material types: rolls, loose, bundled
Material comes from offcut, defective film and washed film.

Woven bag recycling granulating machine is used for woven bag,non woven fabric,PE PP film etc.High effeicency,low consumption and easy to operation.

Quick Detail:

ML Series Woven bag recycling recycling granulating machine:

Material types: PP woven bag, non woven bag ,pp film, pe film, ldpe film, hdpe film, lldpe film, bopp film,waste agricultural film

  1. CE certificate
  2. CAS identification
  3. Lower power consume
  4. More stable output
  5. Smooth & full pellets

Description:

Features of Woven bag recycling granulating machine:

1.High efficiency

Compared with the primary design, the output of XINRONG second generation film granulator machine has been increased 20%.

2.Low power consumption

The power consumption reduced 15% compared with the primary design,.

3.Highly automatically,

Only 2 people for one production line.

  1. Applications of Woven bag recycling granulating machine:

Applicable plastic materials: all kinds of film,such as PE,  HDPE, LDPE,PP, BOPP etc

Material shapes: film, woven bag,crushed material

Material types: rolls, loose, bundled

Material comes from offcut, defective film and washed film.

Note: depending on different material properties, various downstream equipments are needed.

How it works

①Feeding is automatic according to customer requirements.In the patented②cutter compactor the material is cut,mixed,heated,dried,densified and buffered.

The tangentially connected extruder is filled continuously.In the ③ extruder screw the material is extruded.

In the ④degassing zone: the air and water etc is volatilized .The material is extruded to the die ⑤.and⑥pelletizer

Specifications:

Main Technical Parameter of Woven bag recycling granulating machine:

Model

SJ80-100

SJ100-120

SJ120-150

SJ150-180

SJ160-180

SJ180-200

Screw diameter

80-100

100-120

120-150

150-180

160-180

180-200

Output(kg/h)

130-180

230-280

300-400

500-650

650-800

750-900

Machine photos of Woven bag recycling granulating machine

Raw material for Woven bag recycling granulating machine

Crushing and compacting

The rotatory blades of compactor will cut up incoming scraps. Frictional heating which caused by high speed rotatory blades will heat and let scraps shrinking just below their agglomerating point. Optimal designed guide structure compacts the material and directs it into extruder screw. Crushes, dries and compacts the material which enables a fast and stable feeding from the compactor directly into the extruder.

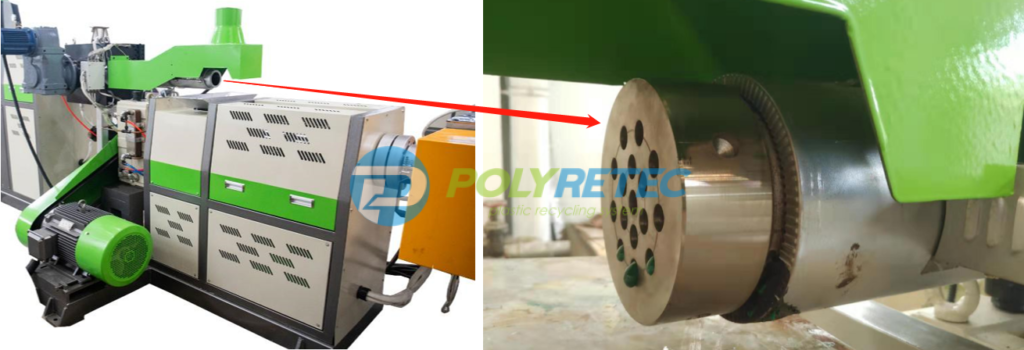

Plasticization and degassing


A specialized single screw extruder applied to gently melt the pre-compacted material. The plastic scraps will be well melted, plasticized in a 34D to 36D processing section. With double-zone vacuum degassing system, volatiles such as low molecular and moisture will be removed efficiency, especially suitable to heavy printed film and material with water content.

Melt filtration


A regular single-plate/ piston double-station screen changer or non-stop double-plate/ piston four-station can be installed on head of extruder to present significant filtration performance. The requirements on the filter technology depend heavily on the quality of the input material as well as the planned use of granules.

Pelletizing

Die-face water ring pelletizing system set as the standard granulating method in PTC-F TM system. Self-adjusting pelletizing head for the best granulate quality and long uptime thanks to consistently correct blades pressure. RPM of rotatory blades is automatic based on melt extruding pressure.

Vibration dry and packing system

Advanced dewatering vibration sieve combining with horizontal- type centrifugal dewatering present high performance dried pellets and lower energy consumption.

Main Technical Parameter

Normal:

Model

SJ80-100

SJ100-120

SJ120-150

SJ150-180

SJ160-180

SJ180-200

Screw diameter

80-100

100-120

120-150

150-180

160-180

180-200

Output(kg/h)

130-180

230-280

300-400

500-650

650-800

750-900

Features of Non woven fabric granulating machine

  1. High efficiency
    Compared with the primary design, the output of POLYRETEC second generation film granulator machine has been increased 20%.
  2. Low power consumption
    The power consumption reduced 15% compared with the primary design,.
  3. Highly automatically,
    Only 2 people for one production line.

About our service:
Before-sale
   1、Introduce products and applications detain
   2、Recommend suitable solution
   3、Provide with reference information
   4、Offer lab for test
During Manufacturing
   1、Provide with layout and engineering conditions
   2、Inform the project processing status
   3、Offer other documents
After-sale
1. Provide with installation, commissioning and training
2. Register and record customer information
3. Offer spare parts
4. Provide with necessary technical support for new application
5. Visit customer regularly and correct information

Why choose us
1.Lower investment cost for a high quality and durable machine;
2. Low energy consumption with high production output;
3. Overseas installation and training are available;
4. Machine warranty with spares in stocking and in-time delivery;
5. Fast machine delivery and installation: POLYTEC produces on an average of 10 sets of plastic machines per month and can deliver the machine faster than most manufacturers. The regular delivery time of an POLYRETEC recycling machine is 60 days.
