Project evaluation

Item:3000 kg/h pet washing line machine

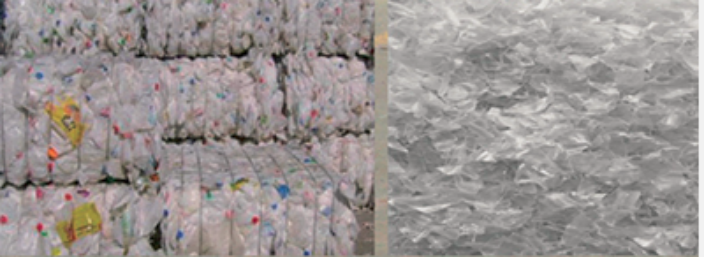

Raw material:waste plastic pet bottle

Finished product:Clean PET flakes:

  1. water content: ≤1.5%
  2. stacking density: 0.25-0.35 g/m³
  3. flakes size: 6-14mm (the size can be design according to customer request)

8-12mm ≥ 90%

≥12mm: ≤ 2%

fine granule: ≤ 3%;

powder: ≤ 5%

  • Power supply :380V,3phases,50HZ(made by customer requirement)
  • Total electricalneeded:about 671kw(actualconsumption:(70%-80%)
  • Size:120м*6м*5.5м, the height of factory must be over 6M, production line can be placed in a line or an angle (Need to provide plant lay out drawing.
  • Water needed:about 8-10t/h.Equip with water treatment if needed.

Photos :

No.
Name
1
Trommel
2
Label remover
3
Steel table
4
Crushers
5
Steam washer
